# Table

### When should we use a table? <a href="#od_89fc757a" id="od_89fc757a"></a>

A table is a structured arrangement of data in rows and columns, where each intersection of a row and a column represents a specific data point. Tables are commonly used to organize and present data in a systematic and easy-to-read format.

### Create a table&#x20;

Read this section to learn about how to create a [here](https://doc.dataflake.co/visualizations/create-a-chart)&#x20;

### Style a table&#x20;

Read [this section](https://doc.dataflake.co/custom-charts/quick-styling-toolbar) to learn about how to use quick styling toolbar&#x20;

### Advanced styling options&#x20;

Read this section to learn about styling chart with many advanced options [here](https://doc.dataflake.co/custom-charts/right-styling-panel)&#x20;

### Configure conditional format

Conditional format in Dataflake helps you highlight cells with a single color or multiple colors based on cells' values.

To Add conditional format, Click ![](https://1648695648-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FygZlXb1uCVgursV03Kgn%2Fuploads%2FYzTJIpwaxlE7TZRWQ9Dk%2Fimage.png?alt=media\&token=6d806ae8-a841-40ab-9749-e05602f6d9cc) button on the quick styling toolbar

<figure><img src="https://1648695648-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FygZlXb1uCVgursV03Kgn%2Fuploads%2FqrORuKlGERRW8Enu40ev%2Fimage.png?alt=media&#x26;token=18b7dffa-afae-46f1-8cab-3678b62e1a89" alt=""><figcaption></figcaption></figure>

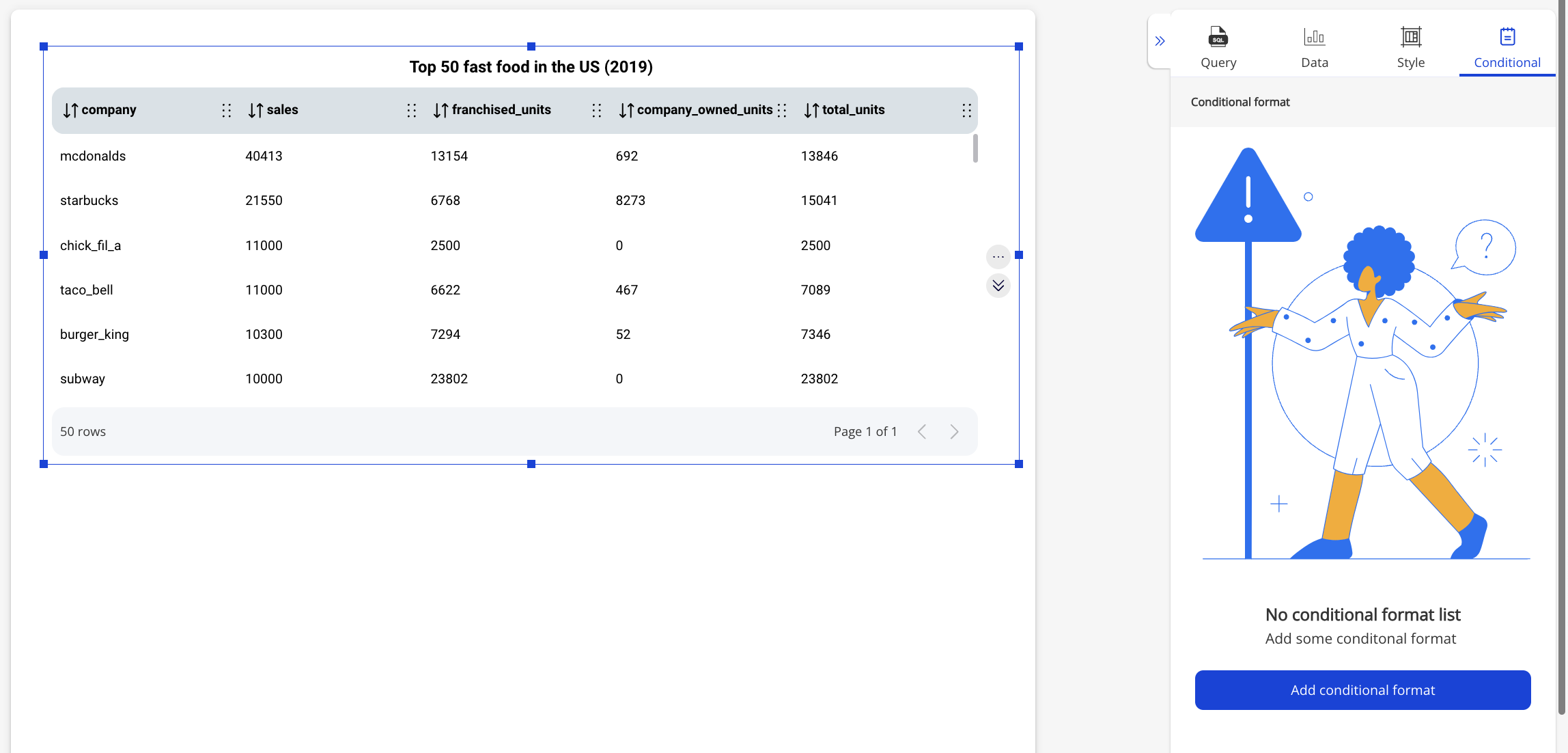

On the right panel, click **Add condition format**&#x20;

<figure><img src="https://1648695648-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FygZlXb1uCVgursV03Kgn%2Fuploads%2FObcrlCqTMsc1G2Vg4VgD%2Fimage.png?alt=media&#x26;token=ec93993d-eab2-4b4e-87fd-4c9faa40fac5" alt=""><figcaption></figcaption></figure>

#### **Single color**

Color style

* Color style enables you to define the color for one row in one column or entire rows.
* Select rows to format conditions
* Select text color
* Select cell's color

**Format rules**

If the cell's value is text, the conditions are as below:

* Is
* Is not
* Is not empty
* Is empty
* Not containing
* Contains
* Ends with
* Starts with
* Match with (Regex)

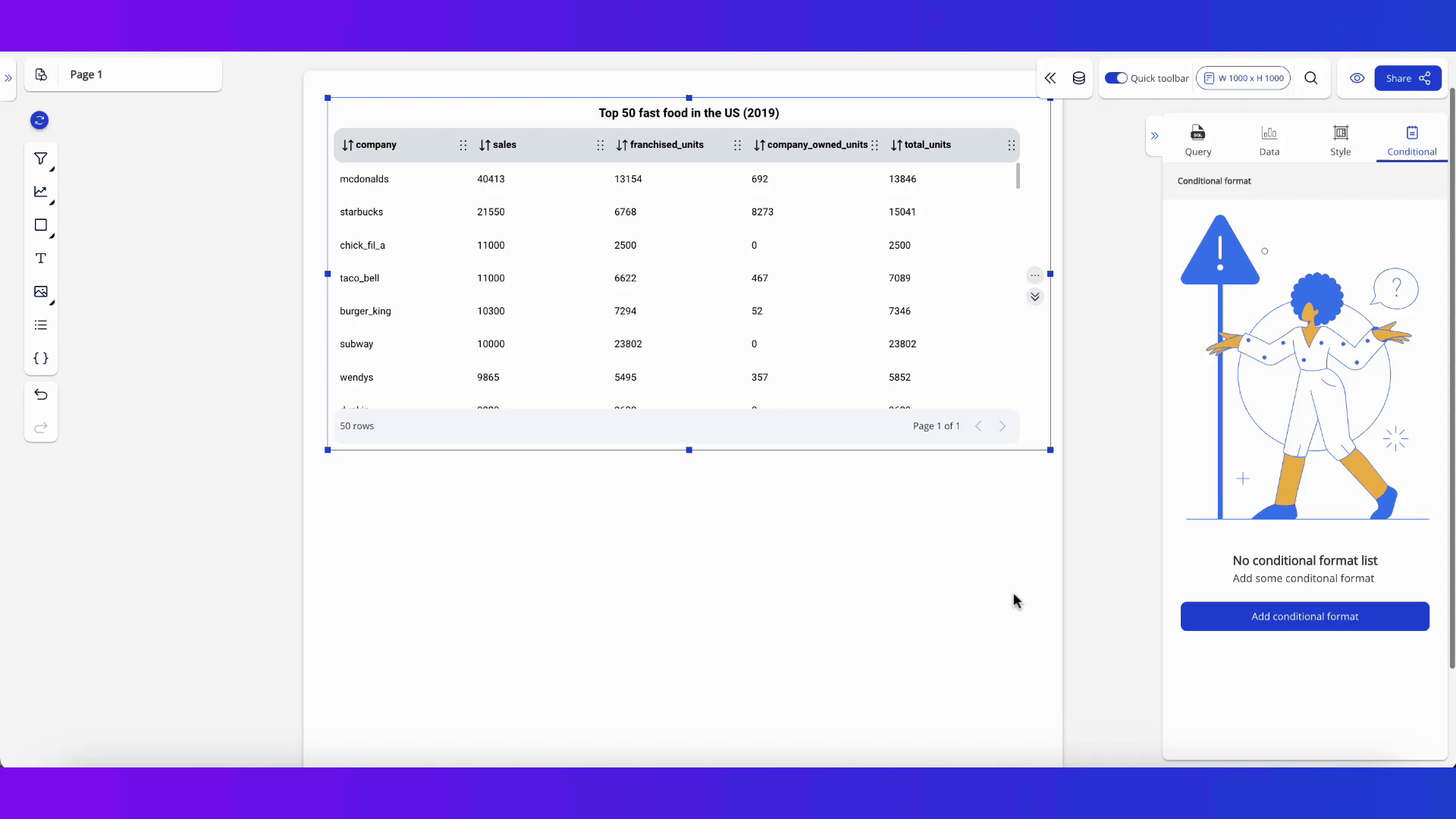

If the cell's value is number, the conditions are as below:

* Greater than
* Greater than or equal
* Less than
* Less than or equal
* Equal
* Not equal

<figure><img src="https://1648695648-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FygZlXb1uCVgursV03Kgn%2Fuploads%2FjgnHYD3gBS22TZCnWJIf%2Fadd-condition-format-1.gif?alt=media&#x26;token=a720a217-24fc-43f8-8763-fc5c2803c77a" alt=""><figcaption></figcaption></figure>

#### **Color scale**

Format based on\
Choose the column value that you want to set format

<figure><img src="https://1648695648-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FygZlXb1uCVgursV03Kgn%2Fuploads%2F9S0F2WfqTXPi40UZRzbn%2Fadd-condition-format-2-copy.gif?alt=media&#x26;token=ae38c338-d8b2-468b-810c-400d951e18d1" alt=""><figcaption></figcaption></figure>

**Color & style**\
Apply on: The column that you want to apply the color scale.\
Click on save to apply conditional formatting
